Cell PE-C30/100
-
Structure
Stainless steel
-
Precision
C3
-
High Capacity
30 to 200 kg
-
Compatibility
Albatross/TBSPI
Features
- Stainless Steel
Specifications
- Capacity: 30 to 200 kg
- Precision Class: C3
- Protection Rating: IP-65
- Cable Length: 3 m
- Output Signal: 2.0 0.01 mV/V
- Zero Output Signal: <1% of R.O.
- Repeatability Error: <0.020% of R.O.
- Creep (30 min): <0.025% of R.O.
- Temperature Effect on Zero: <0.020% of R.O.
- Input Impedance: 410 ± 15 Ω
- Output Impedance: 350 ± 5 Ω
- Insulation Impedance: ≥ 5000 M Ω
- Maximum Input Voltage: 15 V
- Nominal Temperature Range: -10... +40 °C
- Operating Temperature Range: -30... +70 °C

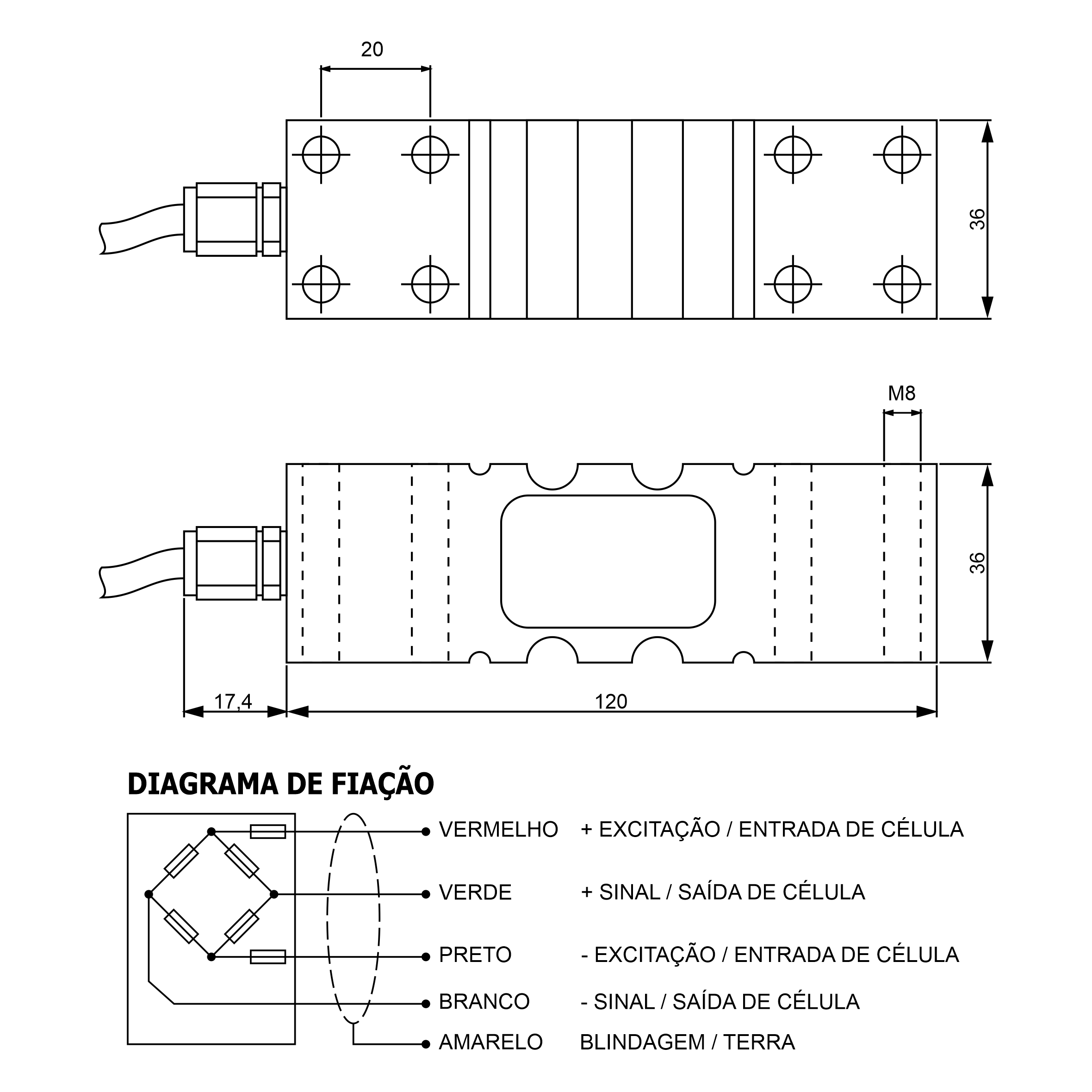

Wiring Diagram
Wiring Diagram
